Key Features

High Efficiency Performance
High Efficiency Performance

High surface area combined with hydrophilic surface deliver high efficiency performance in smaller volume.

Impressively compact
Impressively compact

Innovative capillary design makes our modules most compact products in it's class.

Long Life
Long Life

Designed for extended life, offering low operational costs and minimal maintenance requirements.

Undoubtable integrity
Undoubtable integrity

High mechanical strength of membrane eliminates risk of frequent integrity failure.

Low operating cost
Low operating cost

Hydrophilic surface fouls very less and deliver consistent high flow rates for long durations.

Smooth Inner Surface
Economical

Superior performance at highly competitive pricing, ensuring exceptional value for money.

Hazardous Waste Management Ghaziabad

Specifications

Module Specifications
Parameters Description
Brand Integra
MOC of Membrane Modified PES

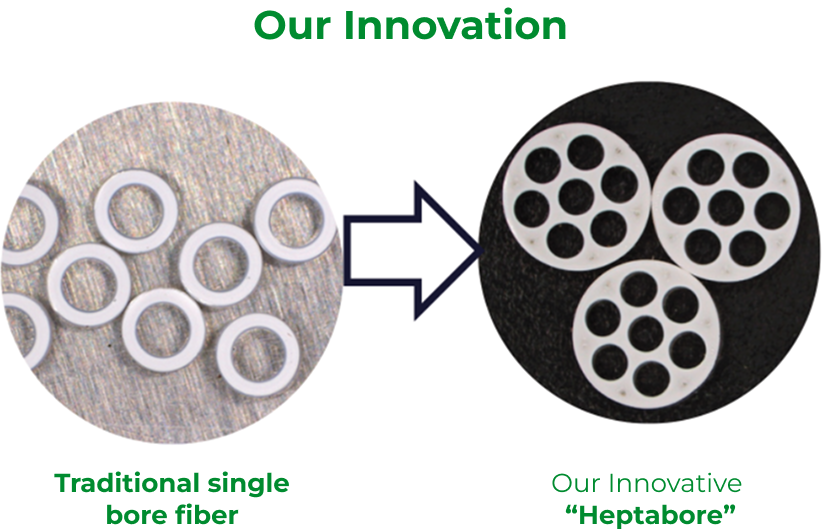

Capillary per fibre Heptalobe
MOC of Body uPVC
MOC Cap uPVC
Potting Material Proprietary Epoxy
Flow In to out
Operating mode Cross Flow / Dead end
ID of fiber capillary 0.85 mm
Preservative SMBS/ Glycerine/ Water Mixture
Operating Conditions
Parameters Description
Maximum inlet pressure 75 psi
Temperature range 1–45°C
Maximum TMP 45 psi
Maximum Feed Pressure 30 psi
Maximum feed TSS * 100 mg/L
Maximum instantaneous Chlorine 200 ppm > pH 10
Maximum cumulative Chlorine 200,000 ppm-hrs > pH 10

# Given TSS limit is for optimized crossflow filtration, module can handle upto 30 mg/L in dead end operation

Applications

Big Performance
Domestic & Municipal Water
  • Drinking water purification
  • Municipal wastewater reuse
Big Performance
Industrial Water
  • Industrial process water
  • Industrial wastewater reuse
  • Pharmaceutical industry
  • Oil & gas industry
Hazardous Waste Management Ghaziabad

Product List

Model no. Dimensions (mm) Membrane area (sq. mt.) End Connections Download
Integra HB 08/90-S2.5 470 x 90 2.5 UPVC union type (DN20)-3/4” PDF
Integra HB 08/S5 940 x 90 5 UPVC union type (DN20)-3/4” PDF
Integra HB 08/200-S25 940 x 200 25 UPVC union type (DN40)-1.5” PDF
Integra HB 08/200-S45 1560 x 200 25 UPVC union type (DN40)-1.5” PDF
Integra HB 08/200-S55 1860 x 200 55 UPVC union type (DN40)-1.5” PDF
Integra HB 08/250-S72 1560 x 250 72 Grooved Coupling (DN50)-2” PDF
Integra HB 08/250-S88 1860 x 250 88 Grooved Coupling (DN50)-2” PDF
